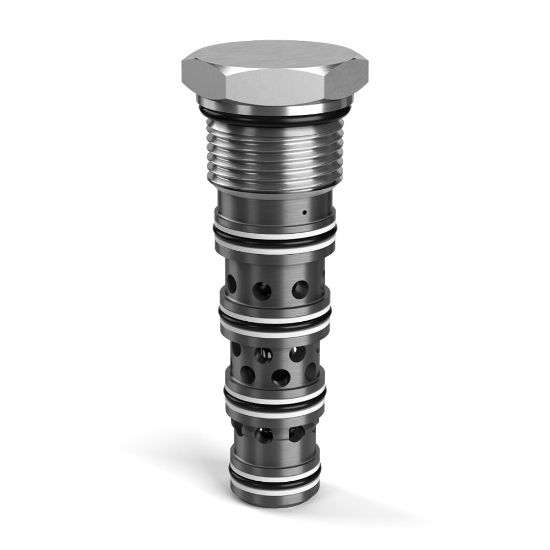

N5B125-6.9N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU N5B125-6.9N

$196.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Switching Pressure	100 PSI, 6.9 BAR	Flow Rate	42 GAL/MIN, 160 L/MIN
Flow Direction	2-3 Neutral, 3-4 Piloted	Configuration	Closed Transition
Standard Flow Rate Setting	24 GAL/MIN, 90 L/MIN	Division	Hydraulic Systems Division
Body Material	N/A	Installation Torque	63 lb-ft
Operation Type	Pilot Operated	Weight	0.33 kg
Actuation Type	Switching	Drain Option	External
Operating Temperature	-34 to +121 °C	Configuration	Closed Transition
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Pilot Location	External
Maximum Operating Pressure	420 bar	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Maximum Flow Rate	42 Gal/min
Leak Rate	275 @ 2900 PSI (200 BAR) cm3/min	Standard Flow Rate Setting	90 L/min
Flow Direction	2-3 Neutral, 3-4 Piloted	Function	Diverter
Maximum Inlet Pressure Rating	420 bar	Flow Rate	42 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Cavity Size	5A
Minimum Operating Temperature	-34 °C	Switching Pressure	100 psi
