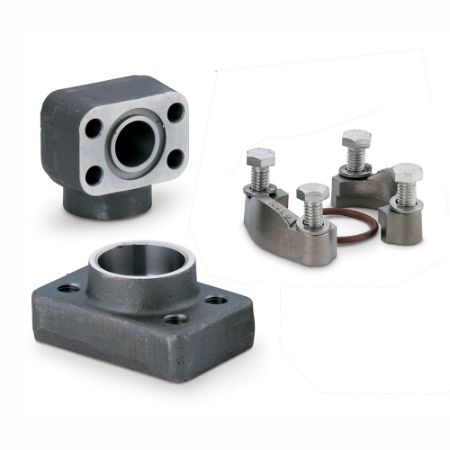

4-Bolt Hydraulic Flanges and Components
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's hydraulic flanges and components conform to SAE J518 and ISO 6162-1 and -2. These proven leak-free connections are suited for tube and pipe in larger sizes, and have achieved world-wide acceptance.
Markets:
• Construction
• Agriculture
• Oil & Gas
• Transportation
• Mining
• Forestry
Features/Benefits:
• Adapts BSPP, SAE Straight thread and NPTF, as well as tube and pipe weld connections.
• Lower tightening torque required compared to that required for equivalent size threaded port, therefore smaller wrenches and wrench swing clearances needed--providing ease of assembly in tight quarters.
• Ease of disassembly with use of split clamps.
• Over 60 configurations available, with custom designs available on request.
• Available in steel and stainless steel in flange sizes ½” through 3” with working pressures up to 6000 psi.
Applications:
• Hydraulic fluid and gas handling connections
Read More...Markets:
• Construction
• Agriculture
• Oil & Gas
• Transportation
• Mining
• Forestry
Features/Benefits:
• Adapts BSPP, SAE Straight thread and NPTF, as well as tube and pipe weld connections.
• Lower tightening torque required compared to that required for equivalent size threaded port, therefore smaller wrenches and wrench swing clearances needed--providing ease of assembly in tight quarters.
• Ease of disassembly with use of split clamps.
• Over 60 configurations available, with custom designs available on request.
• Available in steel and stainless steel in flange sizes ½” through 3” with working pressures up to 6000 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Flange | Flange Size (inch) | Connection Tube O.D. (inch) | Face Style | Connection Style | Connection 1 Style | Connection Pipe O.D. (inch) | Connection Thread Size (inch) | Flange Size | Specifications Met | O-Ring Material | Division | Maximum Dynamic Pressure | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12B3HQ1SX | Backordered | Backordered | $15.58/each | EA | Steel | Code 61 | 3/4 | 3/4 | O-Ring Face | Braze Flange Head Connector | Tube Braze Socket | na | na | Code 61 | ISO 6162-1 | Nitrile | Tube Fittings Division | 4500 psi | n/a | |
| 12B3HQ2SX | Backordered | Backordered | $30.78/each | EA | Steel | Code 62 | 3/4 | 3/4 | O-Ring Face | Braze Flange Head Connector | Tube Braze Socket | na | na | Code 62 | ISO 6162-2 | 90 Durometer | Tube Fittings Division | 6000 psi | n/a | |
| 12CP1SX | Backordered | Backordered | $18.39/each | EA | Steel | Code 61 | 3/4 | na | na | Flange Connector Plate | na | na | na | Code 61 | ISO 6162-1 | n/a | Tube Fittings Division | 5000 psi | n/a | |
| 12CP2SX | Backordered | Backordered | $19.29/each | EA | Steel | Code 62 | 3/4 | na | na | Flange Connector Plate | na | na | na | Code 62 | ISO 6162-2 | n/a | Tube Fittings Division | 6000 psi | n/a | |
| 12FCC1SX | Backordered | Backordered | $14.04/each | EA | Steel | Code 61 | 3/4 | na | na | Captive Flange Clamp - Drilled Holes | na | na | na | Code 61 | ISO 6162-1 | n/a | Tube Fittings Division | 5000 psi | n/a | |
| 12FCC2SX | Backordered | Backordered | $24.68/each | EA | Steel | Code 62 | 3/4 | na | na | Captive Flange Clamp - Drilled Holes | na | na | na | Code 62 | SAE J518 | n/a | Tube Fittings Division | 5000 psi | n/a | |
| 12FCCT1SX | Backordered | Backordered | $17.79/each | EA | Steel | Code 61 | 3/4 | na | na | Captive Flange Clamp - Tapped Holes | na | na | na | Code 61 | ISO | n/a | Tube Fittings Division | 5000 psi | n/a | |
| 12FCCT2SX | Backordered | Backordered | $27.20/each | EA | Steel | Code 62 | 3/4 | na | na | Captive Flange Clamp - Tapped Holes | na | na | na | Code 62 | SAE J518 | n/a | Tube Fittings Division | 6000 psi | n/a | |
| 12FCS1S | Backordered | Backordered | $7.76/each | EA | Steel | Code 61 | 3/4 | na | na | Split Flange Clamps | na | na | na | Code 61 | SAE J518 | n/a | Tube Fittings Division | 5000 psi | n/a | |
| 12FCS1SK | Backordered | 2 Limited Stock | $35.52/each | EA | Steel | Code 61 | 3/4 | na | na | Split Flange Clamps Kit | na | na | na | Code 61 | ISO 6162-1 | n/a | Tube Fittings Division | 5000 psi | Kit Includes 2 Flange Clamp Halves, 4 HHCS Bolts, 4 Lock Washers and an O-Ring | |
| 12FCS1SSK | Backordered | Backordered | $348.02/each | EA | Stainless Steel | Code 61 | 3/4 | na | na | Split Flange Clamps Kit | na | na | na | Code 61 | ISO 6162-1 | n/a | Tube Fittings Division | 5000 psi | Kit Includes 2 Flange Clamp Halves, 4 HHCS Bolts, 4 Lock Washers and an O-Ring | |
| 12FCS2S | Backordered | 245 in stock | $19.74/each | EA | Steel | Code 62 | 3/4 | na | na | Split Flange Clamps | na | na | na | Code 62 | ISO 6162-2 | n/a | Tube Fittings Division | 6000 psi | n/a | |
| 12FCS2SK | Backordered | 2 Limited Stock | $63.65/each | EA | Steel | Code 62 | 3/4 | na | na | Split Flange Clamps Kit | na | na | na | Code 62 | ISO 6162-2 | n/a | Tube Fittings Division | 6000 psi | Kit Includes 2 Flange Clamp Halves, 4 HHCS Bolts, 4 Lock Washers and an O-Ring | |
| 12FCS2SSK | Backordered | Backordered | $511.00/each | EA | Stainless Steel | Code 62 | 3/4 | na | na | Split Flange Clamps Kit | na | na | na | Code 62 | ISO 6162-2 | n/a | Tube Fittings Division | 6000 psi | Kit Includes 2 Flange Clamp Halves, 4 HHCS Bolts, 4 Lock Washers and an O-Ring | |
| 12G4Q1BSX | Backordered | Backordered | $341.58/each | EA | Steel | Code 61 | 3/4 | na | O-Ring Face | Block Adapter | BSPP | na | 3/4-14 | Code 61 | SAE J518 | Nitrile | Tube Fittings Division | 4000 psi | n/a | |
| 12G4Q1BSXK | Backordered | Backordered | $390.30/each | EA | Steel | Code 61 | 3/4 | na | O-Ring Face | Block Adapter Kit | BSPP | na | 3/4-14 | Code 61 | ISO 6162-1 | Nitrile | Tube Fittings Division | 4000 psi | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | |
| 12G5EQ1BSXK | Backordered | Backordered | $148.71/each | EA | Steel | Code 61 | 3/4 | na | O-Ring Face | Block Elbow Kit | SAE | na | 1 1/16-12 | Code 61 | SAE J518 | 90 Durometer | Tube Fittings Division | 4000 psi | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | |
| 12G5EQ2BSXK | Backordered | Backordered | $182.38/each | EA | Steel | Code 62 | 3/4 | na | O-Ring Face | Block Elbow Kit | SAE | na | 1 1/16-12 | Code 62 | SAE J518 | 90 Durometer | Tube Fittings Division | 5000 psi | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | |
| 12G5HQ1SX | Backordered | Backordered | $133.63/each | EA | Steel | Code 61 | 3/4 | na | na | Port Flange Adapter | SAE | na | 1 1/16-12 | Code 61 | ISO 6162-1 | n/a | Tube Fittings Division | 4000 psi | n/a | |
| 12G5Q1BSS | Backordered | Backordered | $512.62/each | EA | Stainless Steel | Code 61 | 3/4 | na | O-Ring Face | Block Adapter | SAE | na | 1 1/16-12 | Code 61 | ISO 6162-1 | 90 Durometer | Tube Fittings Division | 5000 psi | n/a |
