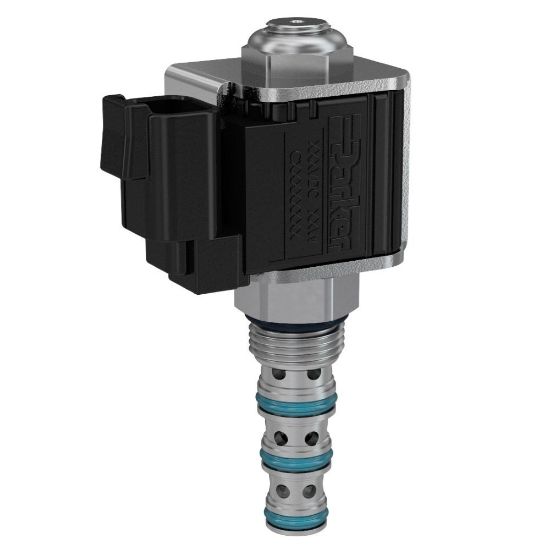

DSH084BT - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DSH084BT

$123.54/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Flow Rate	4 GAL/MIN, 15 L/MIN	Configuration	N/A
Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized	Division	Hydraulic Systems Division
Operating Temperature	-35 to +200 °F	Flow Rate	4 Gal/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Actuation Type	Electrical, Manual
Maximum Flow Rate	4 Gal/min	Maximum Operating Pressure	5000 psi
Maximum Operating Temperature	+93 °C	Minimum Operating Temperature	-35 °F
Body Material	N/A	Seal Material	D-Ring (Standard)
Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized	Weight	0.29 lb
Mounting Type	Screw in cartridge valve	Operation Type	Solenoid operated, Manually operated
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	N/A
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	4-way
Coil Type	1/2" Super Coil	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	240 @ 5000 PSI (350 BAR) cm3/min	Cavity Size	C08-4
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	32-36 lb-ft
Maximum Inlet Pressure Rating	5000 psi	Override Functionality	Push and Twist
Response Time	50 ms	Coil Nut Tightening Torque	7-10 Nm
