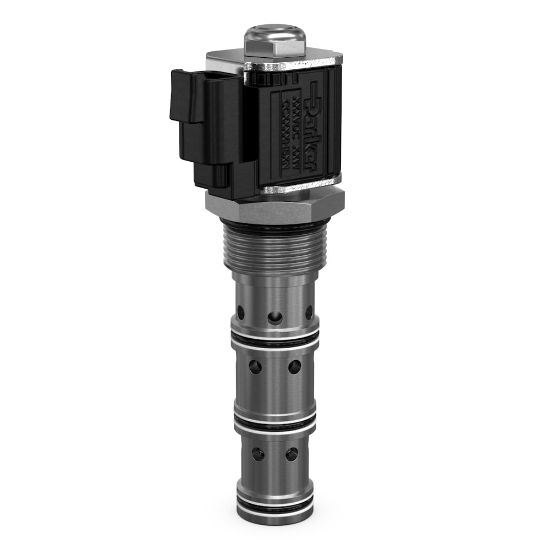

DSH164HR - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DSH164HR

$323.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical
Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized	Flow Rate	30 GAL/MIN, 113 L/MIN
Configuration	Motor Regen Transition	Operation Type	Solenoid operated
Division	Hydraulic Systems Division	Installation Torque	40.6-54.2 Nm
Maximum Operating Pressure	5000 psi	Weight	0.59 kg
Body Material	N/A	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	5000 psi
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	113 L/min
Coil Type	1/2" Super Coil	Leak Rate	350 De-energized, 1.5 GPM Energized Pilot Flow @ 3000 PSI (207 BAR) cm3/min
Maximum Operating Temperature	+121 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Cavity Size	C16-4	Minimum Operating Temperature	-30 °F
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	130 ms
Function	4-way	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Configuration	Motor Regen Transition	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Coil Nut Tightening Torque	7-10 Nm	Actuation Type	Electrical
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-34 to +121 °C
Mounting Type	Screw in cartridge valve	Override Functionality	N/A
Flow Rate	30 Gal/min
