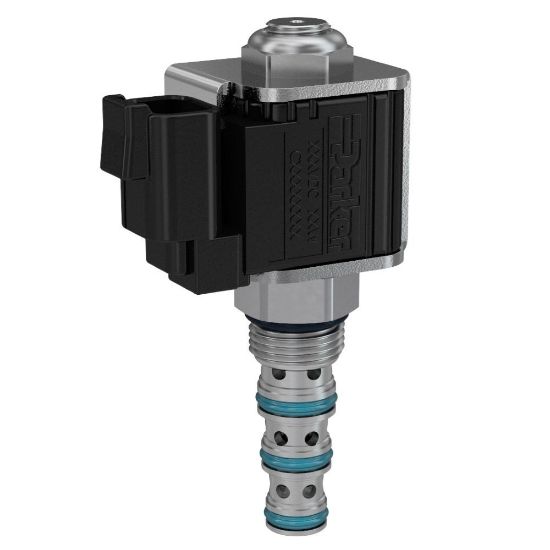

DSL084BTN - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL084BTN

$109.19/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Actuation Type	Electrical, Manual	Flow Rate	4 GAL/MIN, 15 L/MIN
Configuration	N/A	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Mounting Type	Screw in cartridge valve
Flow Rate	4 Gal/min	Override Functionality	Push and Twist
Minimum Operating Temperature	-30 °F	Cavity Size	C08-4
Body Material	N/A	Division	Hydraulic Systems Division
Weight	0.29 lb	Operation Type	Solenoid operated, Manually operated
Installation Torque	23-27 lb-ft	Actuation Type	Electrical, Manual
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-34 to +121 °C	Coil Nut Tightening Torque	7-10 Nm
Maximum Operating Pressure	3600 psi	Configuration	N/A
Maximum Operating Temperature	+250 °F	Leak Rate	160 @ 3600 PSI (250 BAR) cm3/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	4 Gal/min
Seal Material	Nitrile	Valve Material	All parts steel. All operating parts hardened steel
Coil Type	1/2" Super Coil	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Maximum Inlet Pressure Rating	3600 psi	Function	4-way
