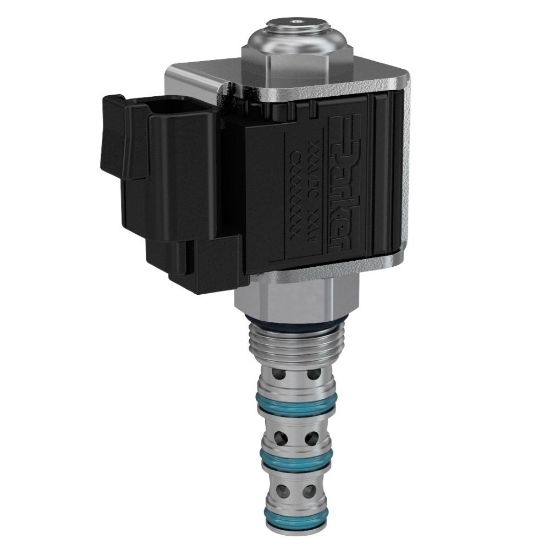

DSL084E1 - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL084E1

$70.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Flow Rate	4 GAL/MIN, 15 L/MIN
Configuration	N/A	Flow Direction	All ports blocked De-Energized, 2-1, 3-4 Energized
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Body Material	N/A
Division	Hydraulic Systems Division	Installation Torque	31-37 Nm
Operation Type	Solenoid operated	Actuation Type	Electrical
Operating Temperature	-35 to +200 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	N/A	Maximum Operating Pressure	3600 psi
Weight	0.29 lb	Coil Nut Tightening Torque	7-10 Nm
Leak Rate	160 @ 3600 PSI (250 BAR) cm3/min	Maximum Operating Temperature	+200 °F
Seal Material	D-Ring (Standard)	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	4 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	1/2" Super Coil	Flow Direction	All ports blocked De-Energized, 2-1, 3-4 Energized
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Maximum Inlet Pressure Rating	250 bar	Function	4-way
Flow Rate	15 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Mounting Type	Screw in cartridge valve	Override Functionality	N/A
Cavity Size	C08-4	Minimum Operating Temperature	-37 °C
