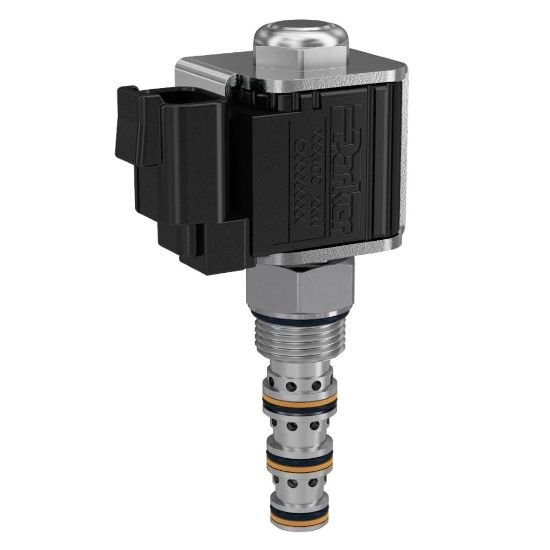

GS024210V - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS024210V

$240.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	5 GAL/MIN, 19 L/MIN
Actuation Type	Electrical, Manual	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Configuration	Reversing Spool	Override Functionality	Non-Detented
Mounting Type	Screw in cartridge valve	Flow Rate	19 L/min
Configuration	Reversing Spool	Coil Nut Tightening Torque	4.1 Nm
Actuation Type	Electrical, Manual	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.3 kg	Maximum Operating Pressure	5000 psi
Installation Torque	30 Nm	Body Material	N/A
Operation Type	Solenoid operated, Manually operated	Division	Hydraulic Systems Division
Maximum Flow Rate	19 L/min	Coil Type	1/2" Super Coil
Maximum Operating Temperature	+204 °C	Leak Rate	150 @ 5000 PSI (350 BAR) cm3/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	5000 psi
Input Voltage	85% of rated voltage at 72°F (20°C) min	Function	4-way
Response Time	50 ms	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Minimum Operating Temperature	-26 °C	Cavity Size	C08-4
