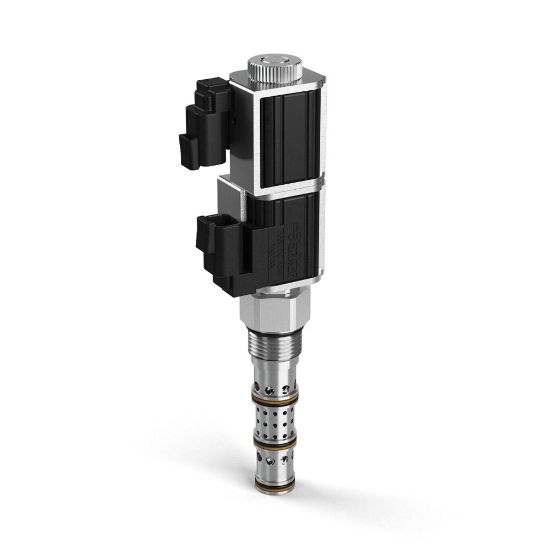

DSH12554DNN - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSH12554DNN

$350.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	15 GAL/MIN, 57 L/MIN
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical, Manual
Configuration	Floating Center	Seal Type	Nitrile
Division	Hydraulic Systems Division	Operating Temperature	-34 to +121 °C
Flow Rate	15 Gal/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Actuation Type	Electrical, Manual	Maximum Flow Rate	15 Gal/min
Maximum Operating Pressure	5000 psi	Maximum Operating Temperature	+121 °C
Minimum Operating Temperature	-34 °C	Body Material	N/A
Seal Material	Nitrile	Weight	1 lb
Mounting Type	Screw in cartridge valve	Operation Type	Solenoid operated, Manually operated
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Floating Center
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	4-way
Coil Type	5/8" Super Coil	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min	Cavity Size	C12-4L
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	55 lb-ft
Maximum Inlet Pressure Rating	5000 psi	Override Functionality	Push/Pull - Center Detent
Response Time	30-60 ms	Maximum Tank Pressure	210 bar
Coil Nut Tightening Torque	4.1 Nm
