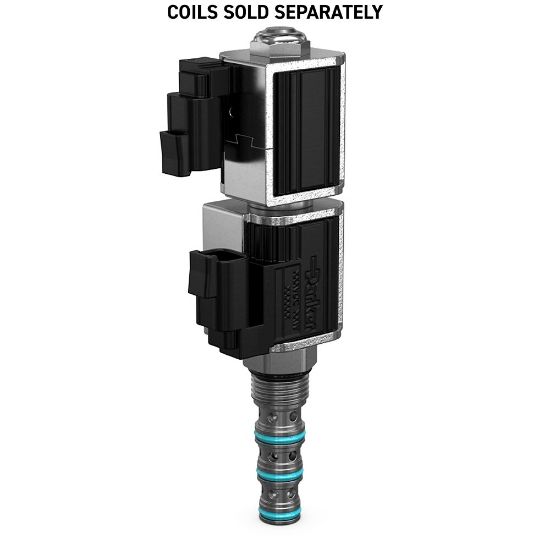

DSL105C1MV - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL105C1MV

$224.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical, Manual
Configuration	Closed Center	Seal Type	Fluorocarbon
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Flow Rate	7 GAL/MIN, 26 L/MIN
Body Material	N/A	Division	Hydraulic Systems Division
Weight	0.64 lb	Operation Type	Solenoid operated, Manually operated
Installation Torque	50-56 Nm	Actuation Type	Electrical, Manual
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-15 to +400 °F	Coil Nut Tightening Torque	5-7 lb-ft
Maximum Operating Pressure	3600 psi	Configuration	Closed Center
Maximum Operating Temperature	+204 °C	Leak Rate	160 @ 3600 PSI (250 BAR) cm3/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	7 Gal/min
Seal Material	Fluorocarbon	Valve Material	All parts steel. All operating parts hardened steel
Coil Type	5/8" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	40-150 ms	Maximum Tank Pressure	N/A psi
Maximum Inlet Pressure Rating	250 bar	Function	4-way
Mounting Type	Screw in cartridge valve	Flow Rate	7 Gal/min
Override Functionality	Push/Pull	Minimum Operating Temperature	-26 °C
Cavity Size	C10-4
