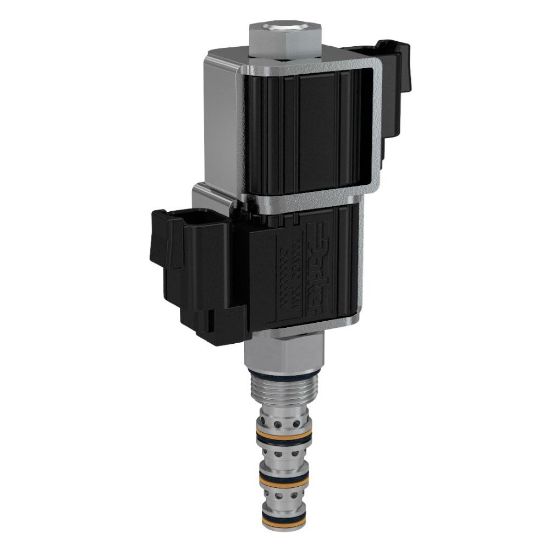

GS025100N - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 25 days
Partner Available:	Backordered

SKU GS025100N

$126.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Configuration	Closed Center
Flow Rate	4.5 GAL/MIN, 17 L/MIN	Seal Type	Nitrile
Weight	0.4 lb	Installation Torque	30 Nm
Operation Type	Solenoid operated	Body Material	N/A
Division	Hydraulic Systems Division	Coil Type	1/2" Super Coil
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	4.5 Gal/min
Leak Rate	250 @ 5000 PSI (350 BAR) cm3/min	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5000 psi	Maximum Tank Pressure	210 bar
Input Voltage	85% of rated voltage at 72°F (20°C) min	Function	4-way
Response Time	50 ms	Cavity Size	C08-4
Minimum Operating Temperature	-30 °F	Override Functionality	N/A
Mounting Type	Screw in cartridge valve	Flow Rate	17 L/min
Coil Nut Tightening Torque	3 lb-ft	Maximum Operating Pressure	350 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Closed Center
Actuation Type	Electrical	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-34 to +121 °C
