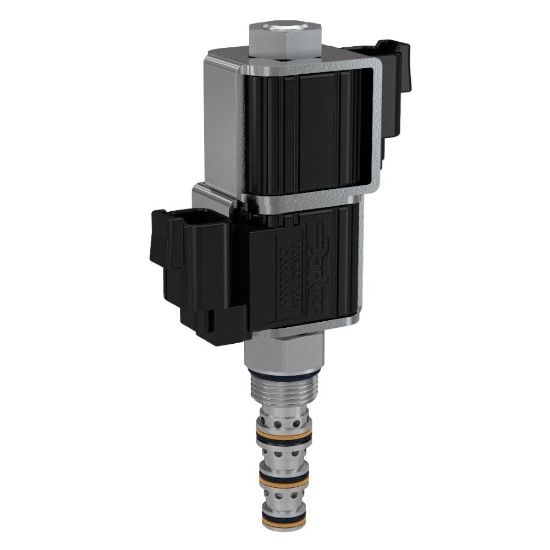

GS025110V - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS025110V

$188.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Configuration	Closed Center
Flow Rate	4.5 GAL/MIN, 17 L/MIN	Seal Type	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	4.5 Gal/min
Leak Rate	250 @ 5000 PSI (350 BAR) cm3/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	350 bar	Maximum Tank Pressure	210 bar
Function	4-way	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Cavity Size	C08-4
Minimum Operating Temperature	-15 °F	Override Functionality	Non-Detetented
Mounting Type	Screw in cartridge valve	Flow Rate	4.5 Gal/min
Coil Nut Tightening Torque	4.1 Nm	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	5000 psi	Configuration	Closed Center
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Electrical, Manual
Operating Temperature	-15 to +400 °F	Installation Torque	22 lb-ft
Weight	0.4 lb	Operation Type	Solenoid operated, Manually operated
Division	Hydraulic Systems Division	Body Material	N/A
Coil Type	1/2" Super Coil
