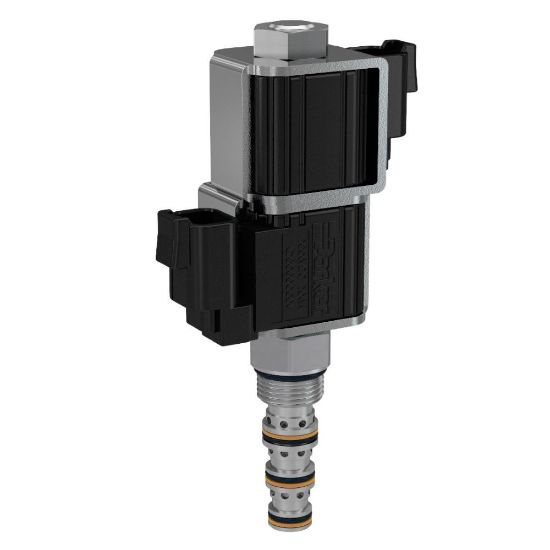

GS025300V - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS025300V

$146.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Configuration	Floating Center
Flow Rate	4 GAL/MIN, 15 L/MIN	Seal Type	Fluorocarbon
Body Material	N/A	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.18 kg	Maximum Operating Pressure	350 bar
Installation Torque	30 Nm	Division	Hydraulic Systems Division
Operation Type	Solenoid operated	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	15 L/min	Coil Type	1/2" Super Coil
Maximum Operating Temperature	+400 °F	Maximum Inlet Pressure Rating	5000 psi
Leak Rate	250 @ 5000 PSI (350 BAR) cm3/min	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Fluorocarbon	Maximum Tank Pressure	3000 psi
Function	4-way	Response Time	50 ms
Input Voltage	85% of rated voltage at 72°F (20°C) min	Minimum Operating Temperature	-26 °C
Cavity Size	C08-4	Mounting Type	Screw in cartridge valve
Override Functionality	N/A	Actuation Type	Electrical
Flow Rate	4 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-15 to +400 °F	Configuration	Floating Center
Coil Nut Tightening Torque	4.1 Nm
