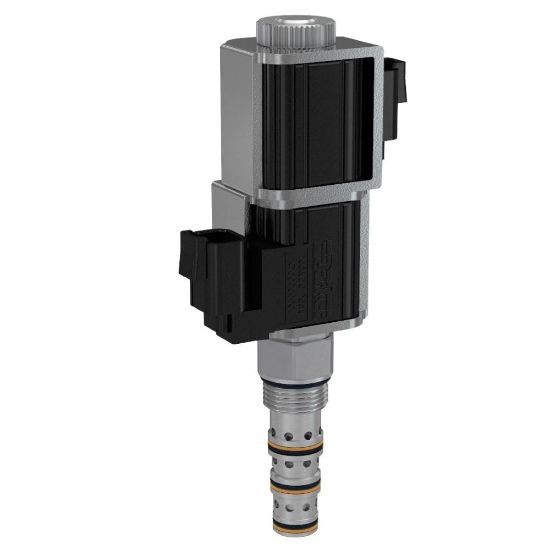

GS045250ND - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GS045250ND

$187.30/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	11 GAL/MIN, 42 L/MIN	Actuation Type	Electrical, Manual
Configuration	Closed Center	Seal Type	Nitrile
Override Functionality	Push/Pull - Center Detent	Mounting Type	Screw in cartridge valve
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Closed Center
Flow Rate	42 L/min	Actuation Type	Electrical, Manual
Operating Temperature	-30 to +250 °F	Coil Nut Tightening Torque	3 lb-ft
Maximum Operating Pressure	5000 psi	Weight	0.26 kg
Body Material	N/A	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Installation Torque	34 Nm	Operation Type	Solenoid operated, Manually operated
Division	Hydraulic Systems Division	Coil Type	5/8" Super Coil
Maximum Flow Rate	42 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min	Maximum Operating Temperature	+250 °F
Maximum Inlet Pressure Rating	5000 psi	Response Time	30-60 ms
Maximum Tank Pressure	210 bar	Function	4-way
Cavity Size	C10-4	Minimum Operating Temperature	-34 °C
Input Voltage	85% of rated voltage at 72°F (20°C) min
