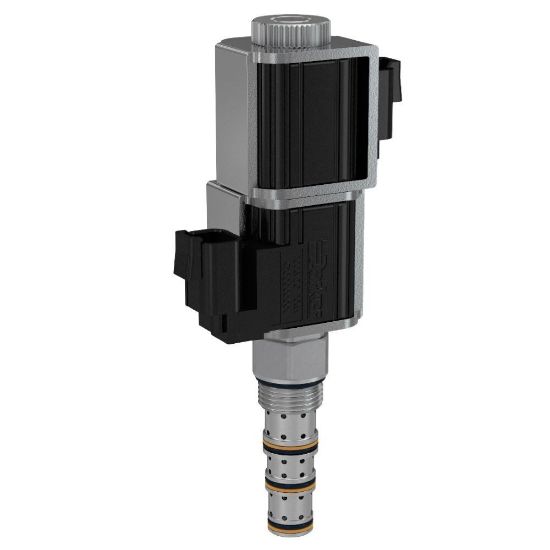

GS045700ND - 4 Way 3 Position Spool Type Solenoid Valve

Name: GS045700ND - 4 Way 3 Position Spool Type Solenoid Valve
SKU: GS045700ND
Price: 154.87 USD
Availability: InStock

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Manufacturer: Parker

Availability:

55 in stock

Wichita, KS

Partner Available:

11 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU GS045700ND

$154.87/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	11 GAL/MIN, 42 L/MIN	Actuation Type	Electrical
Configuration	Tandem Center	Seal Type	Nitrile
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Electrical
Operating Temperature	-34 to +121 °C	Coil Nut Tightening Torque	3 lb-ft
Maximum Operating Pressure	350 bar	Weight	0.58 lb
Configuration	Tandem Center	Body Material	N/A
Division	Hydraulic Systems Division	Installation Torque	34 Nm
Operation Type	Solenoid operated	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	5/8" Super Coil	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Maximum Operating Temperature	+121 °C	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	42 L/min	Seal Material	Nitrile
Maximum Inlet Pressure Rating	350 bar	Maximum Tank Pressure	3000 psi
Function	4-way	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	30-60 ms	Mounting Type	Screw in cartridge valve
Cavity Size	C10-4	Minimum Operating Temperature	-34 °C
Override Functionality	N/A	Flow Rate	42 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
