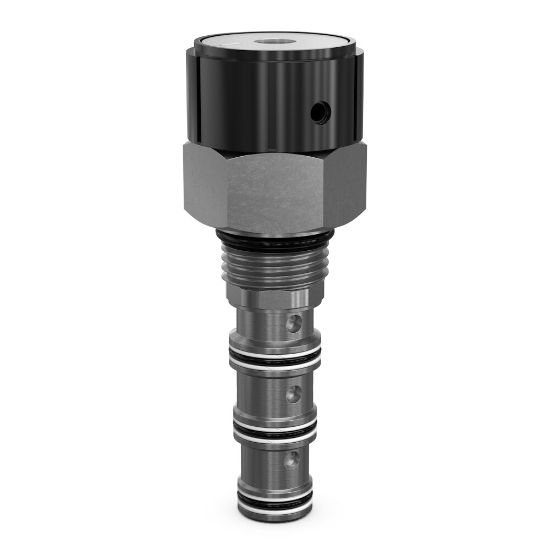

DM104FKD1 - 4 Way Rotary Type Manual Valve

REGIONAL - Parker’s manually operated 4-way, 2 or 3-position directional control spool valve is capable of flows up to 7.5 lpm (2 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DM104FKD1

$253.39/each

Products specifications

Attribute name	Attribute value
UOM	EA	Detents	2 position detent
Configuration	Finger Knob	Seal Material	Nitrile
Spool Type	Closed Center	Operation Type	Manual
Installation Torque	16 lb-ft	Spool Type	Closed Center
Division	Hydraulic Systems Division	Weight	0.11 kg
Maximum Operating Pressure	240 bar	Detents	2 postion detent
Body Material	N/A	Actuation Type	Rotary
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+250 °F
Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min	Maximum Inlet Pressure Rating	3500 psi
Maximum Flow Rate	7.5 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Cavity Size	C10-4	Function	Spool Type
Maximum Tank Pressure	34.5 bar	Configuration	Finger Knob
Rotation Angle	90 °	Flow Rate	2 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Minimum Operating Temperature	-30 °F
