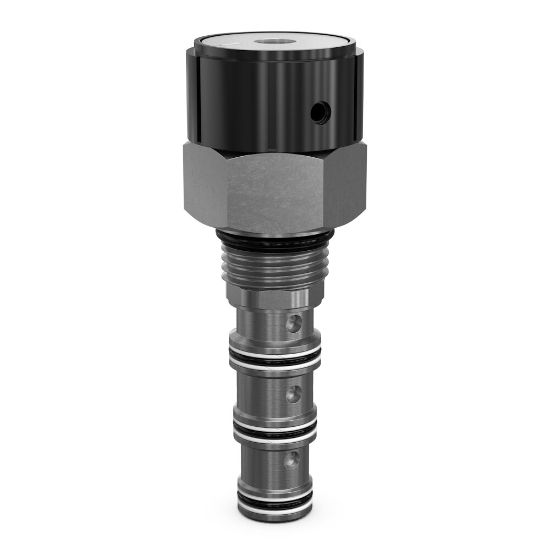

DM104K8 - 4 Way Rotary Type Manual Valve

REGIONAL - Parker’s manually operated 4-way, 2 or 3-position directional control spool valve is capable of flows up to 7.5 lpm (2 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DM104K8

$174.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Knob	Detents	N/A
Spool Type	Tandem Center	Maximum Operating Temperature	+250 °F
Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Seal Material	Nitrile	Maximum Flow Rate	7.5 L/min
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	3500 psi
Maximum Tank Pressure	34.5 bar	Function	Spool Type
Flow Rate	7.5 L/min	Rotation Angle	90 °
Minimum Operating Temperature	-34 °C	Cavity Size	C10-4
Body Material	N/A	Division	Hydraulic Systems Division
Weight	0.3 lb	Installation Torque	22 Nm
Operation Type	Manual	Spool Type	Tandem Center
Detents	N/A	Actuation Type	Rotary
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Knob
Maximum Operating Pressure	240 bar
