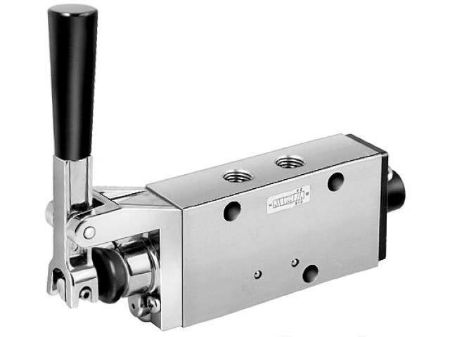

42 Series Manual/Mechanical Valve - 4-way 2-position
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
42 Series Manual/Mechanical Valve - 4-way 2-position
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Offset Return Type | CV Factor | Port | Operator Type Detail | Pkg Qty | Series | Parker Group | Parker Division | Port Inch/BSP | Port | Operating Temperature | Supply Pressure Range | Pneumatic Valve Type | Operator Type | Operator Type Detail | Valve Passages | Valve Positions | Offset Return Type | CV Factor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 422CS021K | Backordered | 10 in stock | $380.56/each | EA | EA | Spring Return | 2.9 | 3/8 NPT | Inline Parallel Lever | 1 | 42 | Automation | Pneumatic | NPT | 3/8 NPT | -18°C to 60°C (0°F to 140°F) | Vacuum to 150 PSI (Vacuum to 10.3 bar) | Inline Valve | Manual/Mechanical | Inline Parallel Lever | 4-way | 2-position | Spring Return | 2.9 | |
| 422CS021W | Backordered | 14 in stock | $394.71/each | EA | EA | Detent | 2.9 | 3/8 NPT | Inline Parallel Lever | 1 | 42 | Automation | Pneumatic | NPT | 3/8 NPT | -18°C to 60°C (0°F to 140°F) | Vacuum to 150 PSI (Vacuum to 10.3 bar) | Inline Valve | Manual/Mechanical | Inline Parallel Lever | 4-way | 2-position | Detent | 2.9 | |
| 422CT021K | Backordered | 4 in stock | $448.08/each | EA | EA | Spring Return | 2.9 | 3/8 NPT | Foot Pedal | 1 | 42 | Automation | Pneumatic | NPT | 3/8 NPT | -18°C to 60°C (0°F to 140°F) | Vacuum to 150 PSI (Vacuum to 10.3 bar) | Inline Valve | Manual/Mechanical | Foot Pedal | 4-way | 2-position | Spring Return | 2.9 |
