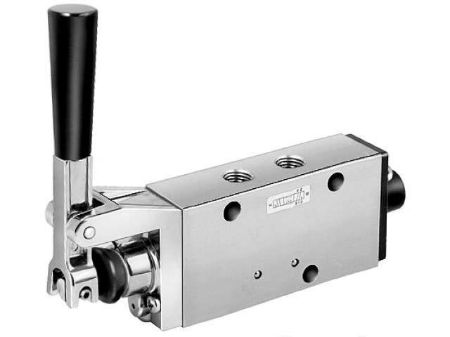

42 Series Manual/Mechanical Valve - 4-way 3-position
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
42 Series Manual/Mechanical Valve - 4-way 3-position
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Center Condition | Port | Operator Type Detail | Pkg Qty | Offset Return Type | CV Factor | Series | Parker Group | Parker Division | Port Inch/BSP | Port | Operating Temperature | Supply Pressure Range | Pneumatic Valve Type | Operator Type | Operator Type Detail | Valve Passages | Valve Positions | Offset Return Type | CV Factor | Center Condition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 422CR023W | Backordered | 1 Limited Stock | $495.99/each | EA | EA | All Ports Blocked | 3/8 NPT | Inline Perpendicular Lever | 1 | Detent | 1.3 | 42 | Automation | Pneumatic | NPT | 3/8 NPT | -18°C to 60°C (0°F to 140°F) | Vacuum to 150 PSI (Vacuum to 10.3 bar) | Inline Valve | Manual/Mechanical | Inline Perpendicular Lever | 4-way | 3-position | Detent | 1.3 | All Ports Blocked | |
| 422CR024W | Backordered | Backordered | $381.53/each | EA | EA | Center Exhaust | 3/8 NPT | Inline Perpendicular Lever | 1 | Detent | 1.3 | 42 | Automation | Pneumatic | NPT | 3/8 NPT | -18°C to 60°C (0°F to 140°F) | Vacuum to 150 PSI (Vacuum to 10.3 bar) | Inline Valve | Manual/Mechanical | Inline Perpendicular Lever | 4-way | 3-position | Detent | 1.3 | Center Exhaust | |
| 422CS023W | Backordered | Backordered | $381.53/each | EA | EA | All Ports Blocked | 3/8 NPT | Inline Parallel Lever | 1 | Detent | 1.3 | 42 | Automation | Pneumatic | NPT | 3/8 NPT | -18°C to 60°C (0°F to 140°F) | Vacuum to 150 PSI (Vacuum to 10.3 bar) | Inline Valve | Manual/Mechanical | Inline Parallel Lever | 4-way | 3-position | Detent | 1.3 | All Ports Blocked | |
| 422CS024W | 4 in stock | Backordered | $381.53/each | EA | EA | Center Exhaust | 3/8 NPT | Inline Parallel Lever | 1 | Detent | 1.3 | 42 | Automation | Pneumatic | NPT | 3/8 NPT | -18°C to 60°C (0°F to 140°F) | Vacuum to 150 PSI (Vacuum to 10.3 bar) | Inline Valve | Manual/Mechanical | Inline Parallel Lever | 4-way | 3-position | Detent | 1.3 | Center Exhaust |
