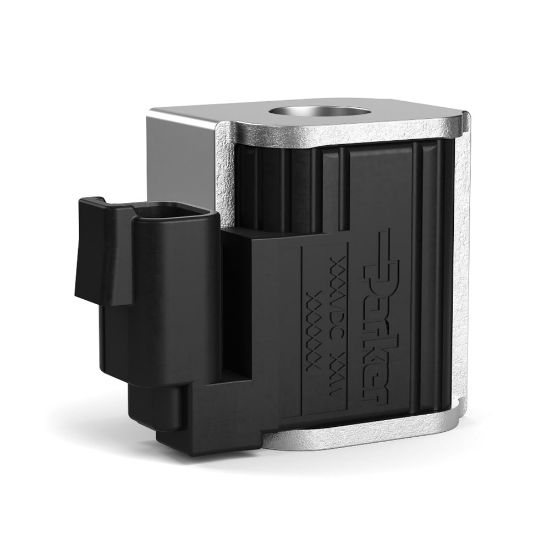

CAP024H - 5/8" Super Coil

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 30 days
Partner Available:	14 in stock

SKU CAP024H

$50.10/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	24 VDC
Connection Type	Integral Deutsch	Diode	No
Power Consumption	28 - High Watt	Body Material	n/a
Actuation Type	n/a	Maximum Operating Pressure	n/a
Weight	0.64 lb	Resistance	20.6 Ω
Division	Hydraulic Systems Division	For Fluid Type	n/a
Maximum Flow Rate	n/a	Division	Hydraulic Cartridge Systems Division
Coil Type	Puissant	Maximum Operating Temperature	392 °F
Seal Material	n/a	Function	5/8" Super Coil
Current	1.17 A	Minimum Operating Temperature	-40 °C
Duty Cycle	Continuous @ 100% Voltage	Flow Rate	n/a
