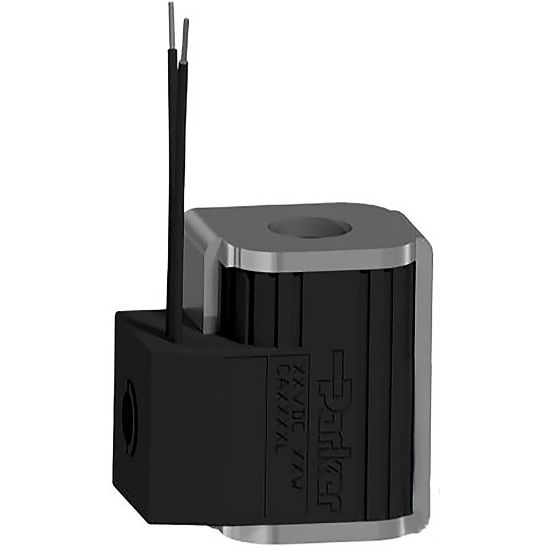

CAP024L - 5/8" Super Coil

Name: CAP024L - 5/8" Super Coil
SKU: CAP024L
Price: 38.54 USD
Availability: LimitedAvailability

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:

1 Limited Stock

Kansas City, KS

Partner Available:

2701 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CAP024L

$38.54/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	24 VDC
Connection Type	Dual Lead Wire	Diode	No
Power Consumption	28 - High Watt	Minimum Operating Temperature	-40 °F
Current	1.17 A	Duty Cycle	Continuous @ 100% Voltage
Flow Rate	n/a	Actuation Type	n/a
Maximum Operating Pressure	n/a	Body Material	n/a
Weight	0.29 kg	Coil Type	Puissant
Resistance	20.6 Ω	Division	Hydraulic Systems Division
Maximum Flow Rate	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Operating Temperature	200 °C	For Fluid Type	n/a
Seal Material	n/a	Function	5/8" Super Coil
