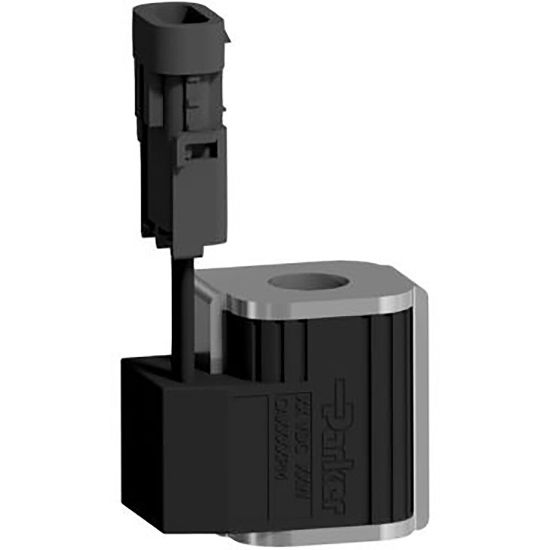

CAS012PM - 5/8" Super Coil

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU CAS012PM

$82.49/each

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	12 VDC
Connection Type	Packard Male	Diode	No
Power Consumption	18 - Low Watt	Seal Material	n/a
Maximum Operating Temperature	200 °C	Function	5/8" Super Coil
Current	1.5 A	Minimum Operating Temperature	-40 °C
Duty Cycle	Continuous @ 100% Voltage	Flow Rate	n/a
Maximum Operating Pressure	n/a	Weight	0.29 kg
Body Material	n/a	Actuation Type	n/a
Resistance	8 Ω	Division	Hydraulic Systems Division
Maximum Flow Rate	n/a	Division	Hydraulic Cartridge Systems Division
Coil Type	Standard	For Fluid Type	n/a
