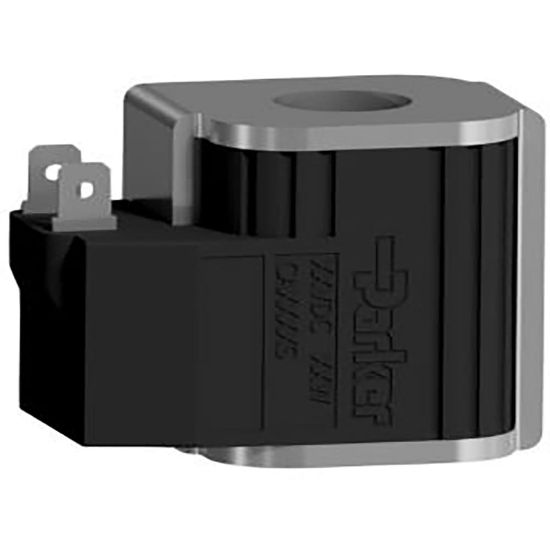

CAS024S - 5/8" Super Coil

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU CAS024S

$42.30/each

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	24 VDC
Connection Type	Dual Spade	Diode	No
Power Consumption	18 - Low Watt	Maximum Operating Pressure	n/a
Actuation Type	n/a	Weight	0.64 lb
Resistance	32 Ω	Division	Hydraulic Systems Division
Body Material	n/a	Coil Type	Puissant
Maximum Flow Rate	n/a	Division	Hydraulic Cartridge Systems Division
For Fluid Type	n/a	Maximum Operating Temperature	200 °C
Seal Material	n/a	Function	5/8" Super Coil
Minimum Operating Temperature	-40 °F	Current	0.75 A
Flow Rate	n/a	Duty Cycle	Continuous @ 100% Voltage
