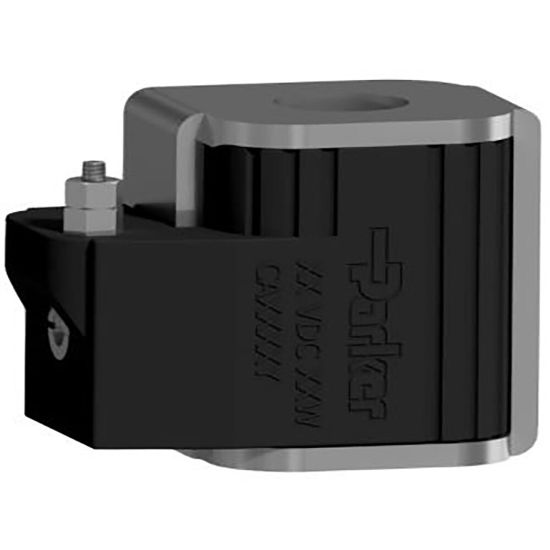

CAS024Y - 5/8" Super Coil

Parker’s broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU CAS024Y

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	24 VDC
Connection Type	Single Screw	Diode	No
Power Consumption	18 - Low Watt	Coil Type	Standard
Maximum Operating Temperature	200 °C	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	n/a	For Fluid Type	n/a
Seal Material	n/a	Function	5/8" Super Coil
Current	0.75 A	Minimum Operating Temperature	-40 °C
Duty Cycle	Continuous @ 100% Voltage	Flow Rate	n/a
Actuation Type	n/a	Maximum Operating Pressure	n/a
Body Material	n/a	Resistance	32 Ω
Weight	0.64 lb	Division	Hydraulic Systems Division
