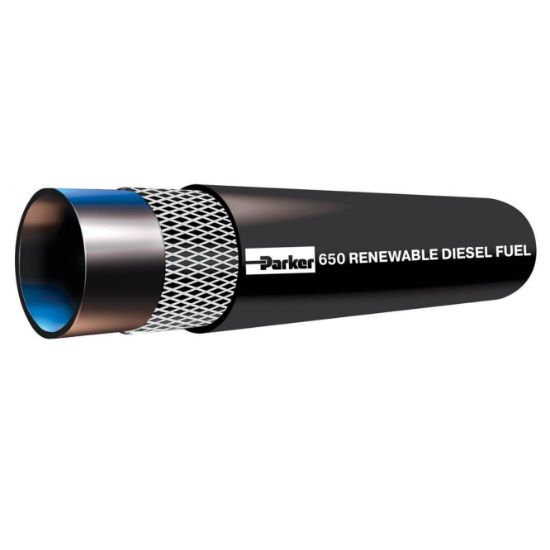

650-6-RL - 650 Renewable Diesel Fuel Hose

650 Renewable Diesel Fuel Hose not only handles all gasoline and diesel requirements, but it is also compatible with renewable biodiesels up to 100%. 650 is compatible with HY series fittings and available with J2044 connections.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 650-6-RL

$3.04/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Application	Media Transfer
Specifications Met	SAE J30R7	Hose Outside Diameter	15.9 mm
Maximum Operating Pressure	400 psi	Weight	0.20 kg/ft
Division	Hose Products Division	Maximum Operating Temperature	125 °C
Hose Inner Tube Material	Black synthetic rubber	Media	Fuels
Hose Inside Diameter	9.5 mm	Cover Material	Black synthetic rubber
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	2.50 inch
Hose Reinforcement Material	Multiple aramid plies
