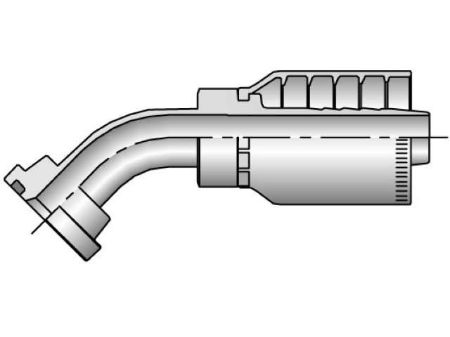

78 Series 11778
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker 78 Series Fittings is a Parkrimp permanent (crimp) style fitting which permits quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hose failure caused by skiving too long or short. 78 Series Fittings has zinc dichromate plating and are used with 781, 782ST, 782TC, 78C Hose - Parker Hydraulic Spiral Hose.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Pkg Qty/UOM | Pkg Qty | End 1 | Material | Inner Diameter | Parker Group | Material | Inch/Metric | Parker Division | End 1 | End 1 Type | Inner Diameter | Inner Diameter Inch/mm | Trade Name | Hose Connection Type | Series | Configuration Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11778-12-12 | 1 Limited Stock | 2 Limited Stock | POR | EA | EA | 1 EA | 1 | 3/4 Inch | Steel | 0.75 Inch | Fluid Connector | Steel | Inch | Hose Products | 3/4 Inch | Inch | 0.75 Inch | Inch | Parkrimp | Permanent | 78 | SAE Code 61 Flange Head-45° Elbow | |
| 11778-16-16 | Backordered | 19 in stock | POR | EA | EA | 1 EA | 1 | 1 Inch | Steel | 1 Inch | Fluid Connector | Steel | Inch | Hose Products | 1 Inch | Inch | 1 Inch | Inch | Parkrimp | Permanent | 78 | SAE Code 61 Flange Head-45° Elbow |
