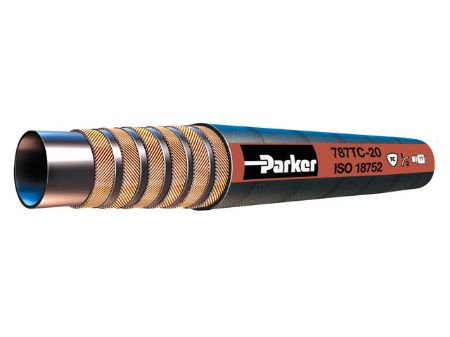

787TC Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s GlobalCore 787TC hose provides 5,000 psi (35 MPa) constant working pressure in all sizes. ½ ISO 18752 minimum bend radius. Flex impulse tested providing a hose superior in both performance and service life. Meets ISO 18752 performance specification.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Inner Diameter | Working Pressure | Material | Pkg Qty/UOM | Pkg Qty | Mating Fitting Series | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Application | Working Pressure Range | Hose Category | Operating Temperature | Trade Name | Mating End Fitting Series | Specification | Minimum Bend Radius | Hose Pressure Range | ISO 18752 Performance | Working Pressure | Series | Distinct Properties |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 787TC-10-BX | Backordered | Backordered | $32.44/foot | FT | FT | 0.625 Inch | 5,000 psi (35 MPa) | Rubber | 50 FT | 50 | 77 | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 77 | ISO 18752 | 4 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | |
| 787TC-10-RL | 426 in stock | 4624 in stock | $26.21/foot | FT | 0.625 Inch | 5,000 psi (35 MPa) | Rubber | 77 | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 77 | ISO 18752 | 4 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-12-BX | Backordered | Backordered | $48.16/foot | FT | FT | 0.75 Inch | 5,000 psi (35 MPa) | Rubber | 50 FT | 50 | 77 | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 77 | ISO 18752 | 4 3/4 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | |
| 787TC-12-RL | 1574 in stock | 7236 in stock | $38.90/foot | FT | 0.75 Inch | 5,000 psi (35 MPa) | Rubber | 77 | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 77 | ISO 18752 | 4 3/4 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-16-BX | Backordered | 73 in stock | $83.11/foot | FT | FT | 1 Inch | 5,000 psi (35 MPa) | Rubber | 50 FT | 50 | 77 | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 77 | ISO 18752 | 6 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | |
| 787TC-16-RL | 558 in stock | 6817 in stock | $63.93/foot | FT | 1 Inch | 5,000 psi (35 MPa) | Rubber | 77 | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 77 | ISO 18752 | 6 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-20-BX | Backordered | 951 in stock | $145.55/foot | FT | 1.25 Inch | 5,000 psi (35 MPa) | Rubber | 77 | Fluid Connector | Inch | Hose Products | 1.25 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 77 | ISO 18752 | 8 1/4 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-24-BX | Backordered | 106 in stock | $161.56/foot | FT | 1.5 Inch | 5,000 psi (35 MPa) | Rubber | 77 | Fluid Connector | Inch | Hose Products | 1.5 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 77 | ISO 18752 | 10 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-32-BX | Backordered | 207 in stock | $202.55/foot | FT | 2 Inch | 5,000 psi (35 MPa) | Rubber | 77 | Fluid Connector | Inch | Hose Products | 2 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 77 | ISO 18752 | 12 1/2 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-4-BX | Backordered | Backordered | $7.27/foot | FT | 0.25 Inch | 5,000 psi (35 MPa) | Rubber | 43 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | 2 Inch | High | AC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-4-RL | 278 in stock | 4612 in stock | $5.87/foot | FT | 0.25 Inch | 5,000 psi (35 MPa) | Rubber | 43 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | 2 Inch | High | AC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-6-BX | Backordered | Backordered | $8.22/foot | FT | 0.375 Inch | 5,000 psi (35 MPa) | Rubber | 43 | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | 2 1/2 Inch | High | AC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-6-RL | 1397 in stock | 20537 in stock | $6.64/foot | FT | 0.375 Inch | 5,000 psi (35 MPa) | Rubber | 43 | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | 2 1/2 Inch | High | AC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | ||||
| 787TC-8-BX | Backordered | Backordered | $29.54/foot | FT | FT | 0.5 Inch | 5,000 psi (35 MPa) | Rubber | 50 FT | 50 | 43 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 43 | ISO 18752 | 3 1/2 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI | |
| 787TC-8-RL | 750 in stock | 7716 in stock | $23.86/foot | FT | 0.5 Inch | 5,000 psi (35 MPa) | Rubber | 43 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +257°F (-40°C to +125°C) | GlobalCore | 43 | ISO 18752 | 3 1/2 Inch | High | DC | 5,000 psi (35 MPa) | 787TC | Tough Cover Constant Pressure 5000 PSI |
