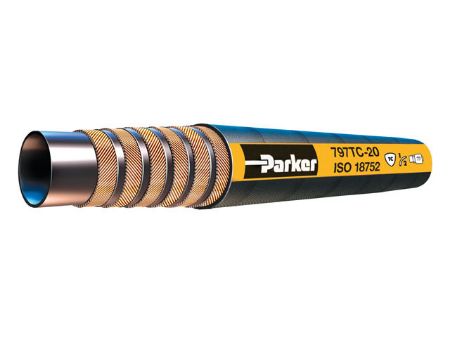

797 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s GlobalCore 797ST hose provides 6,000 psi (35 MPa) constant working pressure in all sizes. ½ bend radius of SAE spiral hose. Flex impulse tested providing a hose superior in both performance and service life. Meets ISO 18752 performance specification.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | Mating Fitting Series | Inner Diameter | Working Pressure | Material | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Application | Working Pressure Range | Hose Category | Operating Temperature | Trade Name | Mating End Fitting Series | Specification | ISO 18752 Performance | Hose Pressure Range | Series | Distinct Properties | Working Pressure | Minimum Bend Radius |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 797-10-BX | Backordered | 41 in stock | $42.67/foot | FT | 77 | 0.625 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 77 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 4 1/2 Inch | |
| 797-10-RL | Backordered | 178 in stock | $34.46/foot | FT | 77 | 0.625 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.625 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 77 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 4 1/2 Inch | |
| 797-12-BX | Backordered | Backordered | $46.62/foot | FT | 77 | 0.75 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 77 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 5 1/4 Inch | |
| 797-12-RL | Backordered | 1978 in stock | $48.98/foot | FT | 77 | 0.75 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 77 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 5 1/4 Inch | |
| 797-16-BX | Backordered | Backordered | $57.33/foot | FT | 77 | 1 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 77 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 6 1/2 Inch | |
| 797-16-RL | Backordered | 547 in stock | $60.20/foot | FT | 77 | 1 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 77 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 6 1/2 Inch | |
| 797-20-BX | Backordered | 92 in stock | $132.61/foot | FT | 77 | 1.25 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 1.25 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 77 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 8 3/4 Inch | |
| 797-24-BX | Backordered | 26 in stock | $150.37/foot | FT | 77 | 1.5 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 1.5 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 77 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 12 Inch | |
| 797-32-BX | Backordered | Backordered | $145.02/foot | FT | 77 | 2 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 2 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 77 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 15 Inch | |
| 797-4-BX | Backordered | Backordered | $6.49/foot | FT | 43 | 0.25 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | AC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 2 Inch | |
| 797-4-RL | Backordered | 1045 in stock | $6.82/foot | FT | 43 | 0.25 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | AC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 2 Inch | |
| 797-6-BX | Backordered | Backordered | $19.09/foot | FT | 43 | 0.375 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 2 1/2 Inch | |
| 797-6-RL | Backordered | 503 in stock | $20.05/foot | FT | 43 | 0.375 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 2 1/2 Inch | |
| 797-8-BX | Backordered | Backordered | $30.05/foot | FT | 43 | 0.5 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 4 Inch | |
| 797-8-RL | 169 in stock | 580 in stock | $24.27/foot | FT | 43 | 0.5 Inch | 6,000 psi (42 MPa) | Rubber | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | Hydraulic | > 5000 PSI (345 bar) | Hydraulic Industry Standard | -40°F to +212°F (-40°C to +100°C) | GlobalCore | 43 | ISO 18752 | BC | High | 797 | Constant Pressure 6000 PSI | 6,000 psi (42 MPa) | 4 Inch |
