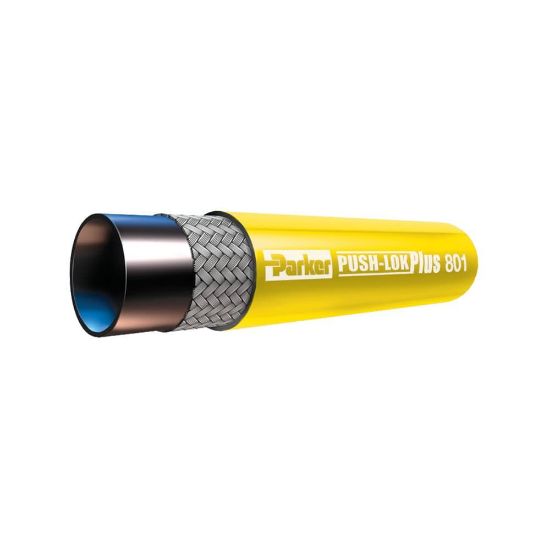

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

801-8-YEL-RL

Name: 801-8-YEL-RL
SKU: 801-8-YEL-RL
Price: 4.07 USD
Availability: InStock

Manufacturer: Parker

Availability:

56 in stock

Wichita, KS

Partner Available:

3261 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 801-8-YEL-RL

$4.07/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Min. Operating Temperature	-40 °C
Weight	0.18 LB	Cover Material	High Performance Synthetic Rubber In Different Colours
Hose Inner Tube Material	Nitrile NBR	Standard	Parker specifications
Min. Bend Radius	4.921 Inch 125 MM	Max. Operating Pressure	21 Bar 2.1 mpa 300 psi
Material	Rubber	Style	Push-Lok Plus
Series	Push-Lok	Hose Dash Size	-8
Media	Air Water Water-glycol-emulsions And Mineral Based Hydraulic And Lubricating Oils	Hose Outside Diameter	0.764 Inch 19.4 MM
Hose Reinforcement Material	High Tensile Fibre Braid	Technology	Fluid & Gas Handling
Hose Inside Diameter	12.7 MM	Max. Operating Temperature	100 (Water: 85 Air: 70) °C 212 (Water: 185 Air: 158) °F
Cover Color	Yellow	Compatible Fitting	82 Series
Type	Push-Lok and Push-on hoses	Vacuum Pressure Rating	28.05 Inch-HG 712.56 MM-HG 0.95 Bar
Parker Group	Fluid Connector	Design Factor	4:1
Parker Division	Hose Products
