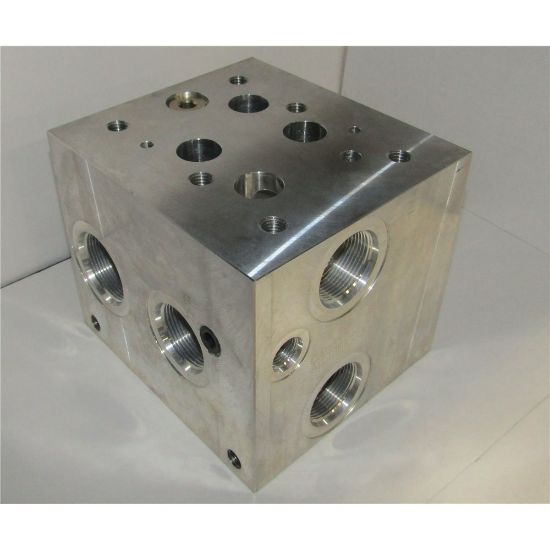

AD08HP015S/C

Manufacturer: Daman

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU AD08HP015S/C

$502.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Aluminum - 6061-T6
Dimensions	7X6X6.25	Port Size	-24 T, -20 P, A & B
Valve Spacing	5.25 Inch	Cavity	Common Cavity: With solenoid clearance. C-16-2 (P in nose)
Circuit	Parallel Circuit High Flow	Pattern	D08 / ISO 4401-08-07, NFPA T3.5.1-D08
Port Type	SAE - ISO 11926	Stations	1
