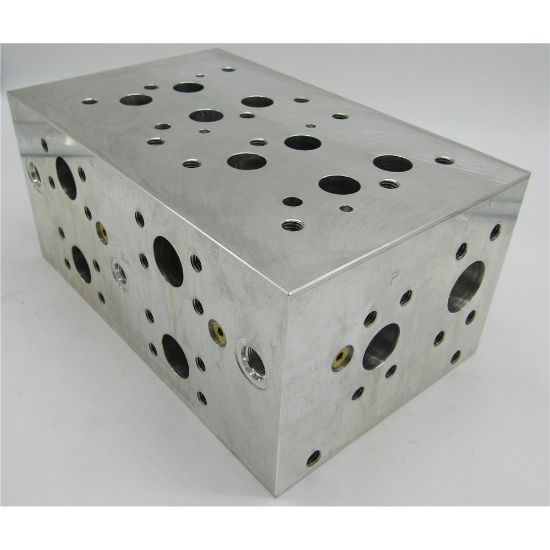

AD08HP025F/C

Manufacturer: Daman

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU AD08HP025F/C

$1,172.73/each

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensions	7X6X11.5
Port Size	1.50" T, 1.25" P, A & B	Material	Aluminum - 6061-T6
Cavity	Common Cavity: Without solenoid clearance. C-16-2 (P in nose)	Valve Spacing	5.25 Inch
Stations	2	Port Type	CODE 61 4-Bolt Flange, SAE J518 - CODE 61, ISO 6162 - 2.5 to 35 MPa
Circuit	Parallel Circuit High Flow	Pattern	D08 / ISO 4401-08-07, NFPA T3.5.1-D08
