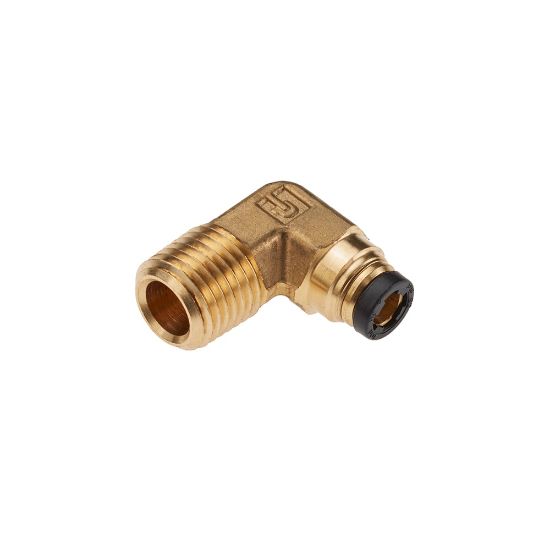

169PTCNS-5/32-1 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	11 in stock

SKU 169PTCNS-5/32-1

$70.12/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection 2 Type	Male NPT	Connection 1 Type	Push-to-Connect
Connection 1 Size	5/32"	Thread Sealant Material	n/a
Configuration	Tube to Pipe	Connection 2 Size	1/16"
Shape	Elbow 90° - Rigid	Body Material	Brass
Maximum Operating Temperature	93.3 °C	Division	Fluid System Connectors Division
Minimum Operating Temperature	-40 °C
