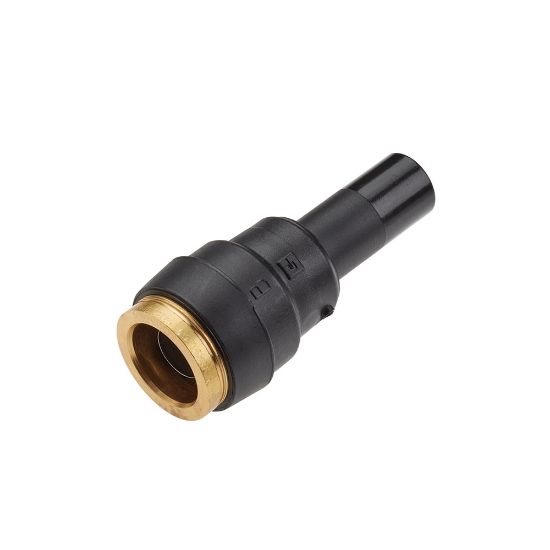

37PTCSP-4-6 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	14 in stock

SKU 37PTCSP-4-6

$8.19/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4"
Connection 2 Size	3/8"	Connection 1 Type	Push-to-Connect
Thread Sealant Material	n/a	Body Material	Composite
Connection 2 Type	Plug-in Stem	Configuration	Tube to Plug-In Stem
Product Style	Plug-In Adapter	Tube Material	J844 Type A & B Nylon Tubing
Collet Material	Brass	Connection Type	NPTF
Division	Fluid System Connectors Division	Maximum Operating Temperature	230 °F
Maximum Operating Pressure	250 psi	O-Ring Material	Buna N
Body Material	Composite	Minimum Operating Temperature	-50 °F
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Application	Air Brakes
