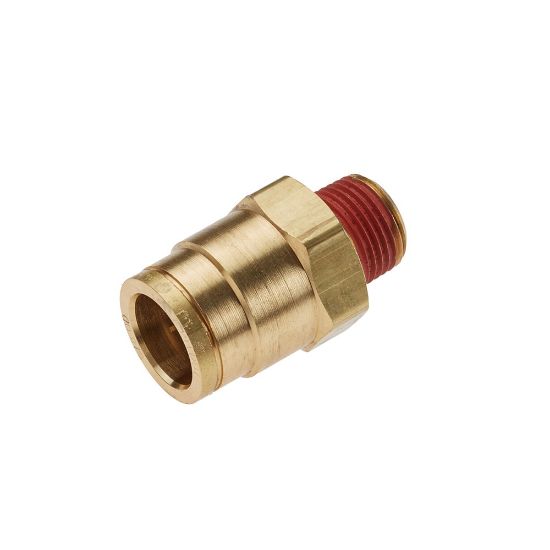

VS68PTC-4-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Name: VS68PTC-4-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR
SKU: VS68PTC-4-4
Price: 5.55 USD
Availability: InStock

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Manufacturer: Parker

Availability:

29 in stock

WICHITA, KS	9
Olivette, MO	4
Springfield, MO	4
COLUMBIA, MO	2
Kansas City, KS	2
Joplin, MO	2
Peoria, IL	2
Olivette, MO	2
Decatur, IL	2

Partner Available:

4609 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VS68PTC-4-4

$5.55/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Push-to-Connect
Body Material	Composite	Connection 2 Type	Male NPT
Configuration	Tube to Pipe	Connection 2 Size	1/4"
Thread Sealant Material	Vibra-Seal	Product Style	Connector
Connection 1 Size	1/4"	Maximum Operating Pressure	250 psi
Body Material	Brass	O-Ring Material	Buna N
Dimensional Weight	0.2759 lb	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F	Connection Type	NPTF
Collet Material	Brass	Tube Material	J844 Type A & B Nylon Tubing
Application	Air Brakes	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3
Minimum Operating Temperature	-40 °F
