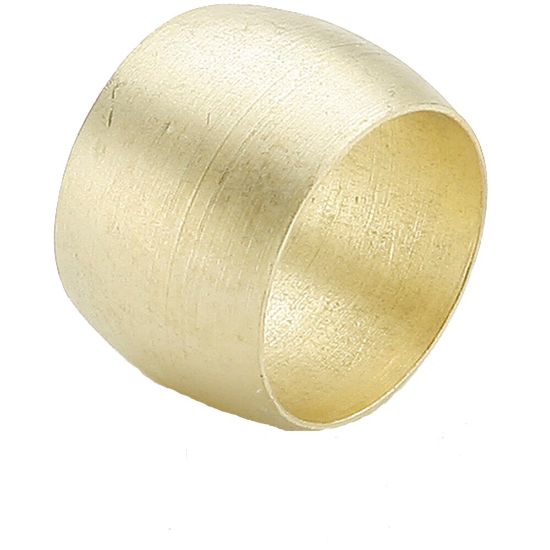

60AB-4 - Air Brake D.O.T. compression style fittings, AB

Name: 60AB-4 - Air Brake D.O.T. compression style fittings, AB
SKU: 60AB-4
Price: 0.62 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Manufacturer: Parker

Availability:

86 in stock

TOPEKA, KS

Partner Available:

330 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 60AB-4

$0.62/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Style	na
Shape	Sleeve	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Style	Tube
Maximum Operating Pressure	400 psi	Body Material	Brass
Nut Material	Brass	Maximum Operating Temperature	250 °F
Division	Fluid System Connectors Division	Tube Material	Annealed Copper
Sleeve Material	Brass	Minimum Operating Temperature	-65 °F
Thread Sealant Material	Vibra-Seal 516	Application	Air Brake
Specifications Met	DOT FMVSS 571.106, SAE J246
