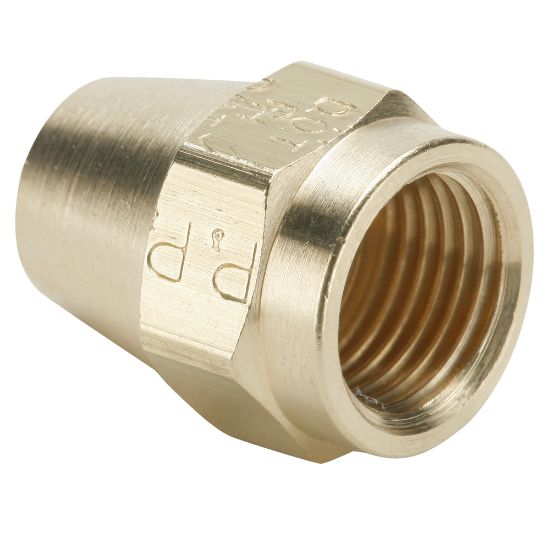

61AB-8 - Air Brake D.O.T. compression style fittings, AB

Name: 61AB-8 - Air Brake D.O.T. compression style fittings, AB
SKU: 61AB-8
Price: 5.11 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Manufacturer: Parker

Availability:

6 in stock

Olivette, MO

Partner Available:

237 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 61AB-8

$5.11/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Style	na
Connection 2 Thread Size (inch)	na	Shape	Nut
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/2	Style	Tube
Division	Fluid System Connectors Division	Application	Air Brake
Maximum Operating Pressure	400 psi	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-53 °C	Body Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J246	Tube Material	Annealed Copper
Nut Material	Brass	Sleeve Material	Brass
Thread Sealant Material	Vibra-Seal 516
