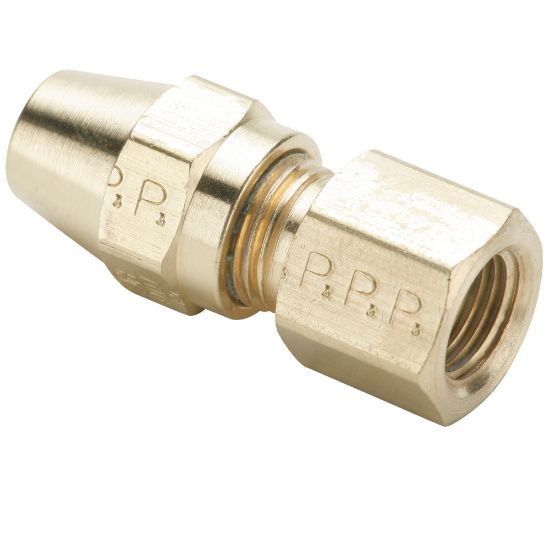

66AB-4-2 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	1 Limited Stock

SKU 66AB-4-2

$15.92/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Shape	Connector
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
Sleeve Material	Brass	Tube Material	Annealed Copper
Minimum Operating Temperature	-53 °C	Application	Air Brake
Thread Sealant Material	Vibra-Seal 516	Specifications Met	DOT FMVSS 571.106, SAE J246
Nut Material	Brass	Body Material	Brass
Maximum Operating Pressure	27 bar	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F
