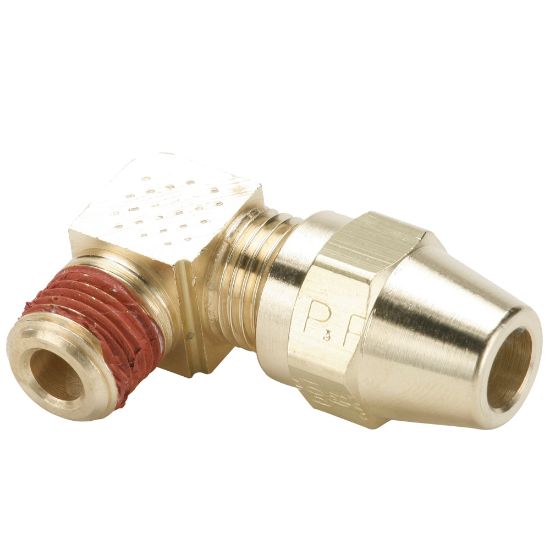

VS269AB-8-4 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	3 in stock

SKU VS269AB-8-4

$30.58/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	1/2
Style	Tube to Pipe	Connection 1 Style	Compression
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/4
Shape	90° Elbow	Connection 2 Tube O.D. (inch)	na
Thread Sealant Material	Vibra-Seal 516	Application	Air Brake
Specifications Met	DOT FMVSS 571.106, SAE J246	Minimum Operating Temperature	-53 °C
Body Material	Brass	Nut Material	Brass
Maximum Operating Pressure	27 bar	Maximum Operating Temperature	250 °F
Division	Fluid System Connectors Division	Sleeve Material	Brass
Tube Material	Annealed Copper
