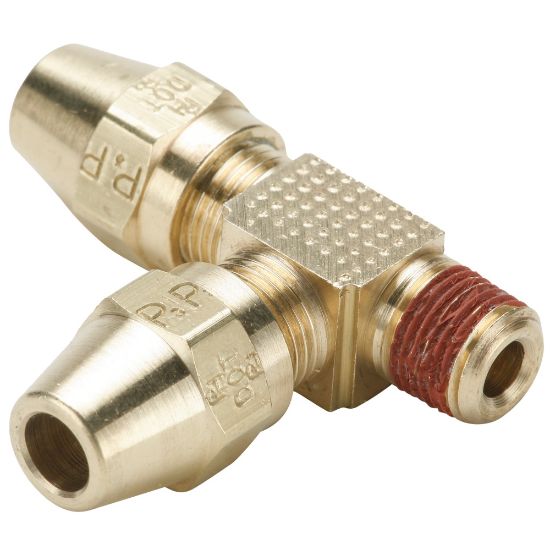

VS271AB-4-4 - Air Brake D.O.T. compression style fittings, AB

Name: VS271AB-4-4 - Air Brake D.O.T. compression style fittings, AB
SKU: VS271AB-4-4
Price: 38.60 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Manufacturer: Parker

Availability:

9 in stock

Kansas City, KS	5
Olivette, MO	4

Partner Available:

31 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VS271AB-4-4

$38.60/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Connection 2 Style	Male Pipe	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Style	Tube to Pipe	Shape	Run Tee
Body Material	Brass	Maximum Operating Pressure	400 psi
Nut Material	Brass	Division	Fluid System Connectors Division
Maximum Operating Temperature	121 °C	Sleeve Material	Brass
Tube Material	Annealed Copper	Specifications Met	DOT FMVSS 571.106, SAE J246
Application	Air Brake	Thread Sealant Material	Vibra-Seal 516
Minimum Operating Temperature	-65 °F
