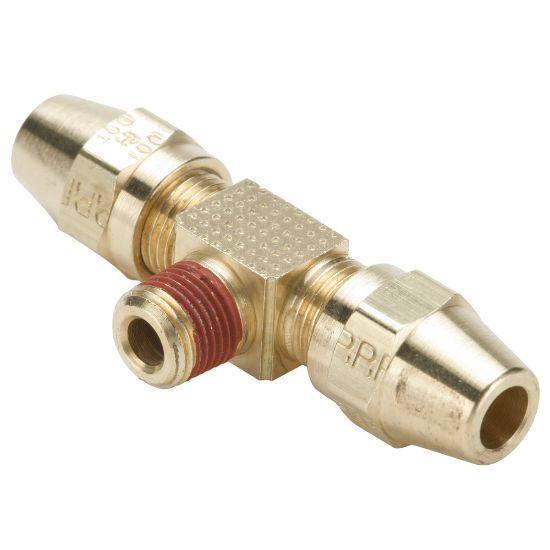

VS272AB-10-8 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 47 days
Partner Available:	Backordered

SKU VS272AB-10-8

$81.51/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Branch Tee
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	1/2	Style	Tube to Pipe
Connection 1 Style	Compression	Connection 2 Style	Male Pipe
Body Material	Brass	Maximum Operating Pressure	400 psi
Nut Material	Brass	Maximum Operating Temperature	121 °C
Division	Fluid System Connectors Division	Minimum Operating Temperature	-53 °C
Tube Material	Annealed Copper	Sleeve Material	Brass
Thread Sealant Material	Vibra-Seal 516	Application	Air Brake
Specifications Met	DOT FMVSS 571.106, SAE J246
