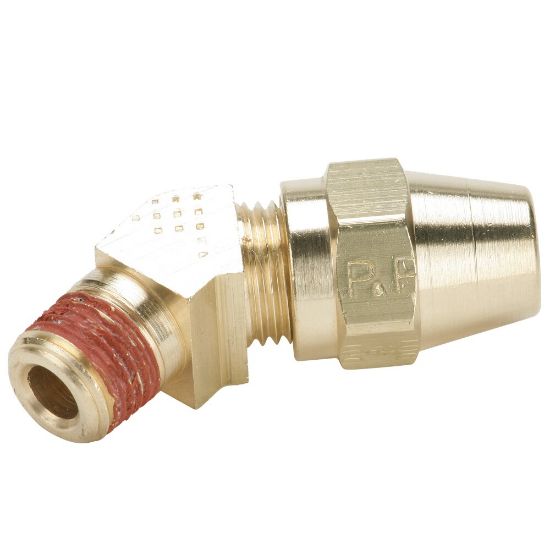

VS279AB-6-2 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 43 days
Partner Available:	155 in stock

SKU VS279AB-6-2

$37.08/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	3/8
Connection 2 Tube O.D. (inch)	na	Connection 2 Thread Size (inch)	1/8
Shape	45° Elbow	Style	Tube to Pipe
Connection 1 Style	Compression	Connection 2 Style	Male Pipe
Division	Fluid System Connectors Division	Sleeve Material	Brass
Tube Material	Annealed Copper	Maximum Operating Temperature	250 °F
Thread Sealant Material	Vibra-Seal 516	Specifications Met	DOT FMVSS 571.106, SAE J246
Minimum Operating Temperature	-65 °F	Nut Material	Brass
Body Material	Brass	Maximum Operating Pressure	400 psi
Application	Air Brake
