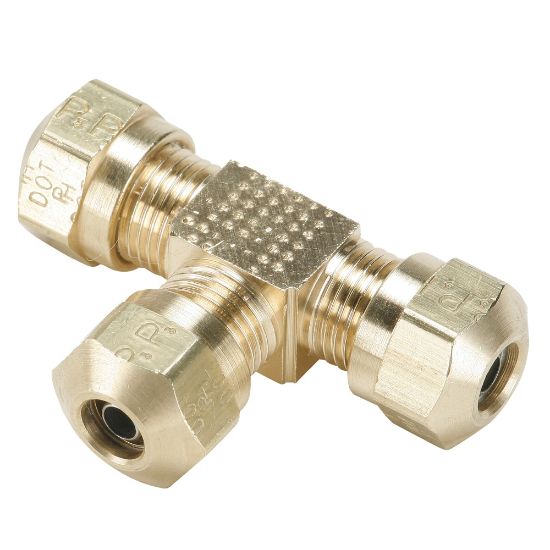

264NTA-6 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	260 in stock

SKU 264NTA-6

$28.61/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	3/8
Connection 1 Style	Compression	Connection 2 Style	Compression
Style	Tube to Tube	Connection 1 Tube O.D. (inch)	3/8
Sleeve Material	Brass	Minimum Operating Temperature	-40 °C
Division	Fluid System Connectors Division	Maximum Operating Temperature	200 °F
Tube Material	Stainless Steel	Maximum Operating Pressure	150 psi
Nut Material	Brass	Body Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Thread Sealant Material	Vibra-Seal 516
Application	Air Brake, Accessories	Dimensional Weight	0.27594424460431655 lb
