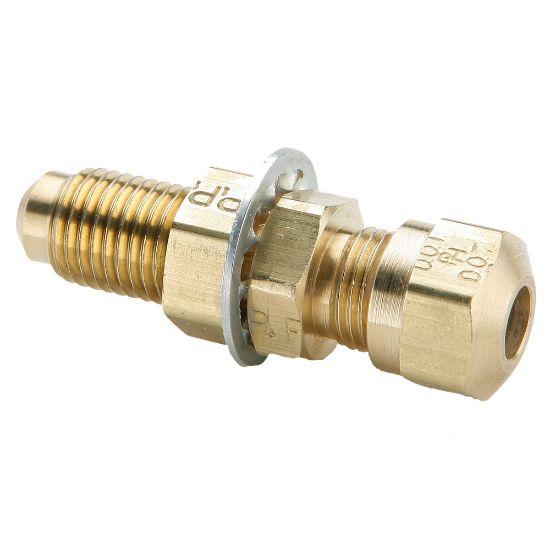

62NFBH-8 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	25 in stock

SKU 62NFBH-8

$44.86/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	Bulkhead
Connection 2 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	1/2
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/2
Style	Tube to Flare	Connection 2 Style	45 Flare
Division	Fluid System Connectors Division	Maximum Operating Temperature	200 °F
Sleeve Material	Brass	Tube Material	Stainless Steel
Minimum Operating Temperature	-40 °F	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Thread Sealant Material	Vibra-Seal 516	Application	Air Brake, Accessories
Dimensional Weight	0.27594424460431655 lb	Maximum Operating Pressure	10 bar
Nut Material	Brass	Body Material	Brass
