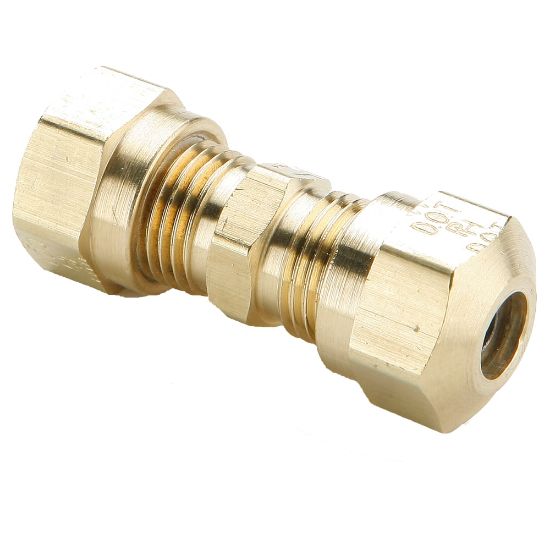

62NTA-6 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: 62NTA-6 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: 62NTA-6
Price: 11.29 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:

38 in stock

Kansas City, KS	33
Springfield, MO	4
Kansas City, KS	1

Partner Available:

503 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 62NTA-6

$11.29/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	3/8	Connection 1 Style	Compression
Connection 2 Style	Compression	Style	Tube to Tube
Connection 1 Tube O.D. (inch)	3/8	Shape	Union
Maximum Operating Pressure	10 bar	Dimensional Weight	0.11037769784172662 lb
Body Material	Brass	Nut Material	Brass
Maximum Operating Temperature	200 °F	Division	Fluid System Connectors Division
Tube Material	Stainless Steel	Sleeve Material	Brass
Minimum Operating Temperature	-40 °C	Thread Sealant Material	Vibra-Seal 516
Application	Air Brake, Accessories	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
