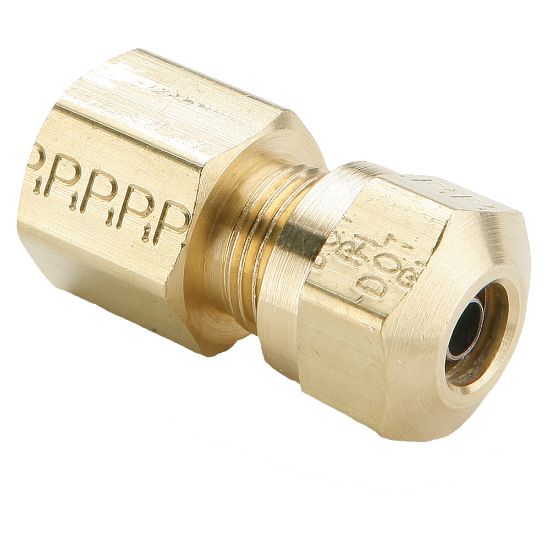

66NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: 66NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: 66NTA-4-4
Price: 11.73 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:

16 in stock

Springfield, MO	9
Kansas City, KS	7

Partner Available:

64 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 66NTA-4-4

$11.73/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Shape	Connector	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Thread Size (inch)	1/4
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
Maximum Operating Pressure	150 psi	Nut Material	Brass
Body Material	Brass	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F	Sleeve Material	Brass
Tube Material	Stainless Steel	Minimum Operating Temperature	-40 °C
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Thread Sealant Material	Vibra-Seal 516
Application	Air Brake, Accessories
