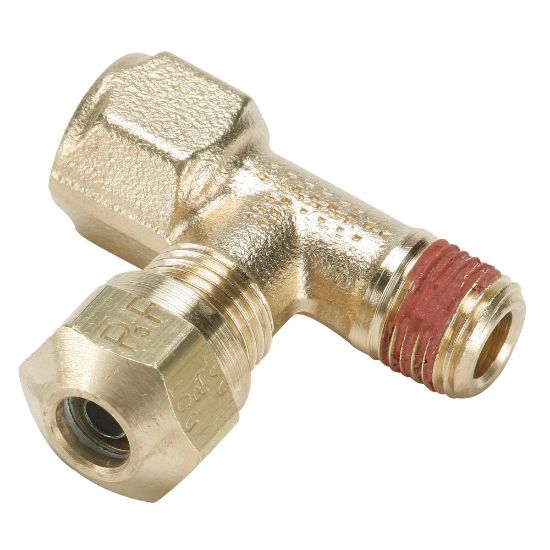

VS176NTA-4-2 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 59 days
Partner Available:	2 Limited Stock

SKU VS176NTA-4-2

$72.45/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Tube O.D. (inch)	na	Connection 2 Thread Size (inch)	1/8
Connection 3 Thread Size (inch)	1/8	Style	Tube to Pipe
Connection 1 Style	Compression	Connection 3 Style	Female Pipe
Connection 2 Style	Male Pipe	Shape	Adapter Tee
Nut Material	Brass	Body Material	Brass
Maximum Operating Pressure	10 bar	Maximum Operating Temperature	200 °F
Division	Fluid System Connectors Division	Minimum Operating Temperature	-40 °F
Tube Material	Stainless Steel	Sleeve Material	Brass
Application	Air Brake, Accessories	Thread Sealant Material	Vibra-Seal 516
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
