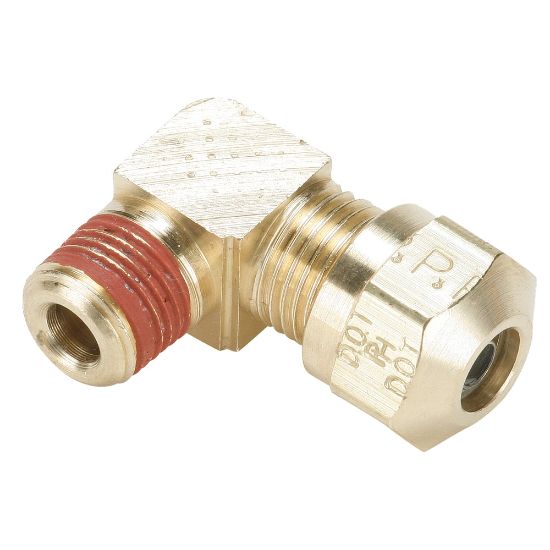

VS269NTA-6-2 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: VS269NTA-6-2 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS269NTA-6-2
Price: 9.20 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:

30 in stock

Kansas City, KS	20
Olivette, MO	9
Springfield, MO	1

Partner Available:

605 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VS269NTA-6-2

$9.20/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	3/8
Shape	90° Elbow	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Connection 3 Style	na
Connection 1 Style	Compression	Connection 3 Thread Size (inch)	na
Connection 2 Style	Male Pipe	Style	Tube to Pipe
Division	Fluid System Connectors Division	Maximum Operating Temperature	200 °F
Sleeve Material	Brass	Tube Material	Stainless Steel
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Application	Air Brake, Accessories
Thread Sealant Material	Vibra-Seal 516	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	10 bar	Nut Material	Brass
Body Material	Brass	Dimensional Weight	0.11037769784172662 lb
