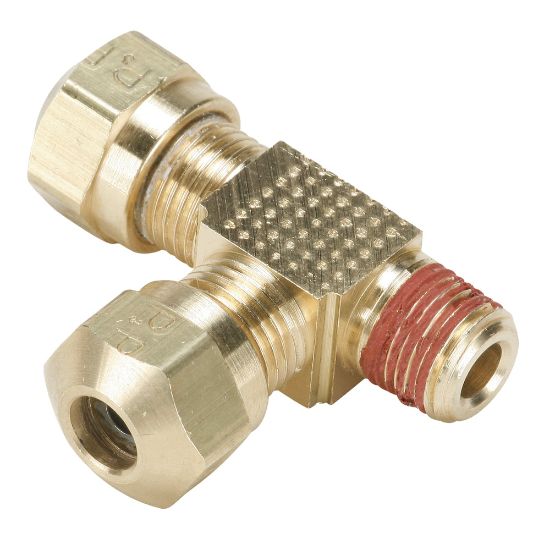

VS271NTA-10-8 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	31 in stock

SKU VS271NTA-10-8

$95.68/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	5/8
Connection 2 Tube O.D. (inch)	na	Shape	Run Tee
Connection 2 Thread Size (inch)	1/2	Connection 3 Thread Size (inch)	na
Connection 2 Style	Male Pipe	Connection 3 Style	na
Connection 1 Style	Compression	Style	Tube to Pipe
Nut Material	Brass	Body Material	Brass
Tube Material	Stainless Steel	Division	Fluid System Connectors Division
Maximum Operating Temperature	93 °C	Minimum Operating Temperature	-40 °C
Sleeve Material	Brass	Maximum Operating Pressure	10 bar
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Thread Sealant Material	Vibra-Seal 516
Application	Air Brake, Accessories
