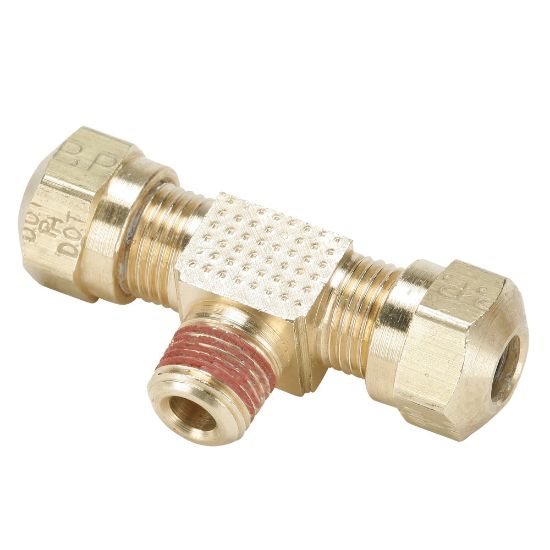

VS272NTA-6-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: VS272NTA-6-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS272NTA-6-4
Price: 18.33 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:

13 in stock

Kansas City, KS	12
Springfield, MO	1

Partner Available:

74 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VS272NTA-6-4

$18.33/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	3/8
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 2 Style	Male Pipe	Style	Tube to Pipe
Connection 2 Thread Size (inch)	1/4	Connection 3 Thread Size (inch)	na
Connection 3 Style	na	Shape	Branch Tee
Tube Material	SAE J844 Type A & B Nylon Tubing	Sleeve Material	Brass
Dimensional Weight	0.27594424460431655 lb	Application	Air Brake, Accessories
Minimum Operating Temperature	-40 °C	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Thread Sealant Material	Vibra-Seal 516	Maximum Operating Pressure	150 psi
Nut Material	Brass	Body Material	Brass
Maximum Operating Temperature	200 °F	Division	Fluid System Connectors Division
