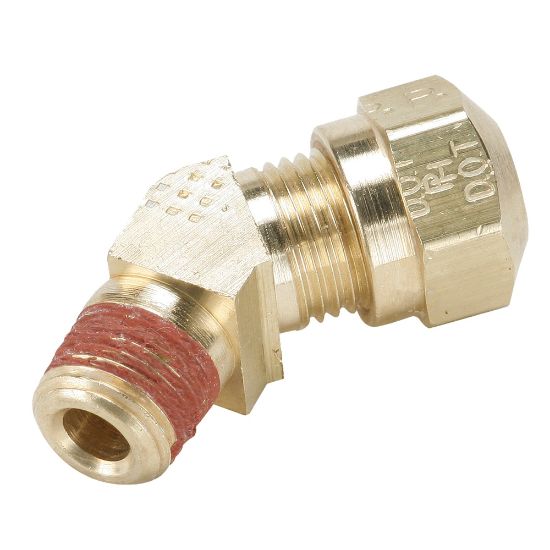

VS279NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: VS279NTA-4-4 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS279NTA-4-4
Price: 28.25 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:

72 in stock

Kansas City, KS	48
Olivette, MO	20
Springfield, MO	3
Wichita, KS	1

Partner Available:

1783 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VS279NTA-4-4

$28.25/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Connection 3 Thread Size (inch)	na	Connection 3 Style	na
Connection 2 Thread Size (inch)	1/4	Shape	45° Elbow
Connection 2 Style	Male Pipe	Style	Tube to Pipe
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Tube Material	Stainless Steel	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F	Minimum Operating Temperature	-40 °F
Sleeve Material	Brass	Maximum Operating Pressure	10 bar
Nut Material	Brass	Thread Sealant Material	Vibra-Seal 516
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Application	Air Brake, Accessories
Dimensional Weight	0.27594424460431655 lb	Body Material	Brass
