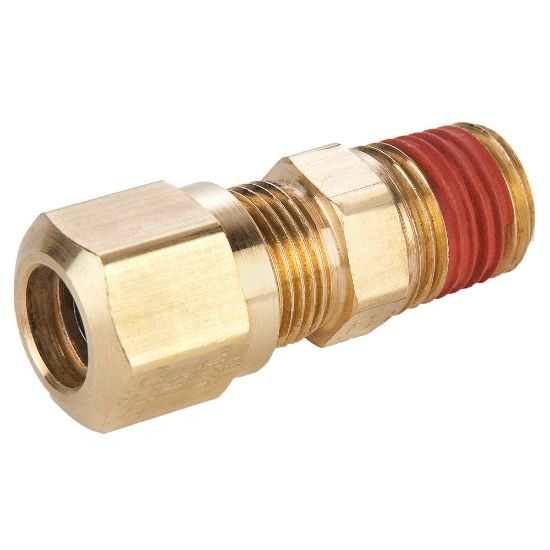

VS68NTA-6-8 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: VS68NTA-6-8 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS68NTA-6-8
Price: 17.67 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Manufacturer: Parker

Availability:

10 in stock

Kansas City, KS

Partner Available:

242 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VS68NTA-6-8

$17.67/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Style	Tube to Pipe
Connection 1 Style	Compression	Connection 3 Thread Size (inch)	na
Connection 3 Style	na	Connection 2 Style	Male Pipe
Shape	Connector	Connection 2 Thread Size (inch)	1/2
Connection 1 Tube O.D. (inch)	3/8	Connection 2 Tube O.D. (inch)	na
Thread Sealant Material	Vibra-Seal 516	Application	Air Brake, Accessories
Dimensional Weight	0.27594424460431655 lb	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Minimum Operating Temperature	-40 °F	Body Material	Brass
Maximum Operating Pressure	10 bar	Nut Material	Brass
Maximum Operating Temperature	200 °F	Division	Fluid System Connectors Division
Sleeve Material	Brass	Tube Material	SAE J844 Type A & B Nylon Tubing
